Locator for sewer cameras vLoc3-Cam

Easy sewer camera locating can be done using the vLoc3-Cam locating system.
  • Bright 10 cm color screen
  • Fast, easy and accurate probe location
  • 360° Guide Arrows
  • Realtime depth display

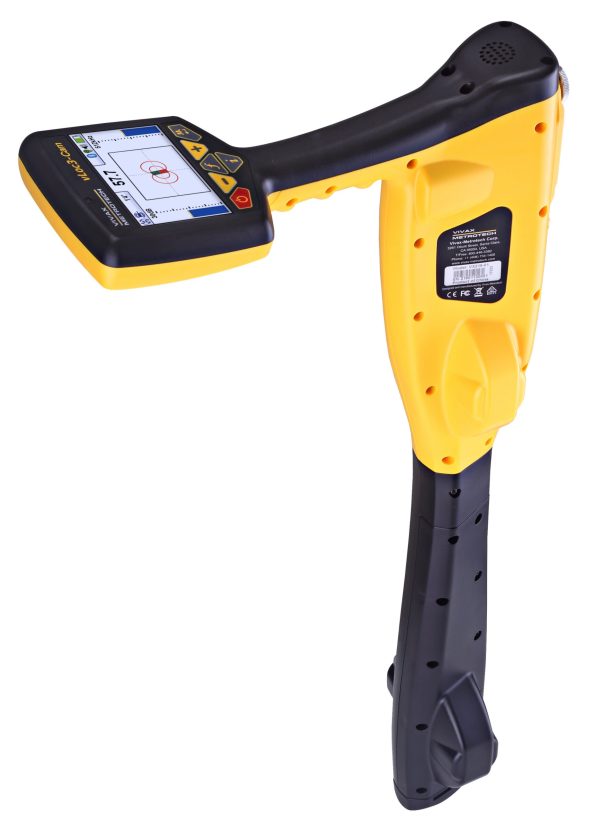

Locator for sewer cameras vLoc3-Cam
The locator for sewer cameras vLoc3-Cam is the easiest-to-use probe locator on the market. The waterproof bright colour screen with depth display uses directional arrows to guide the user quickly and easily to the sonde of the sewer camera. As a result, the vLoc3-Cam is capable of locating probes from the leading push and drive cameras on the market quickly and easily. With this, vLoc3-Cam, locating system it is also possible to trace power lines, CATV, telephone lines and the pushcable itself (using optional transmitter).
Sonde locator for sewer cameras

System
Specifications

  • Sonde mode - 512Hz, 640Hz, 8,192kHz, 33kHz, and 83kHz
  • Radio - 10kHz - 22.7kHz bandwidth
  • Power supply detection - 50Hz and 60Hz
  • Bright daylight readable 4.3" display screen
  • Weight: 2,1 kg
  • Dimensions: 321mm x 124mm x 124mm (L x B x H)
  • Bluetooth connection to smartphone i.c.w. GPS (optional)

Additional information

Using the vLoc3-Cam sewer camera locator, underground sewer cameras can be easily located. The push cables of Vivax camera systems; vCamMX-2 and vCam6-HD and thus the location of the sewer can be located by using the optional transmitter VM-550FF.
